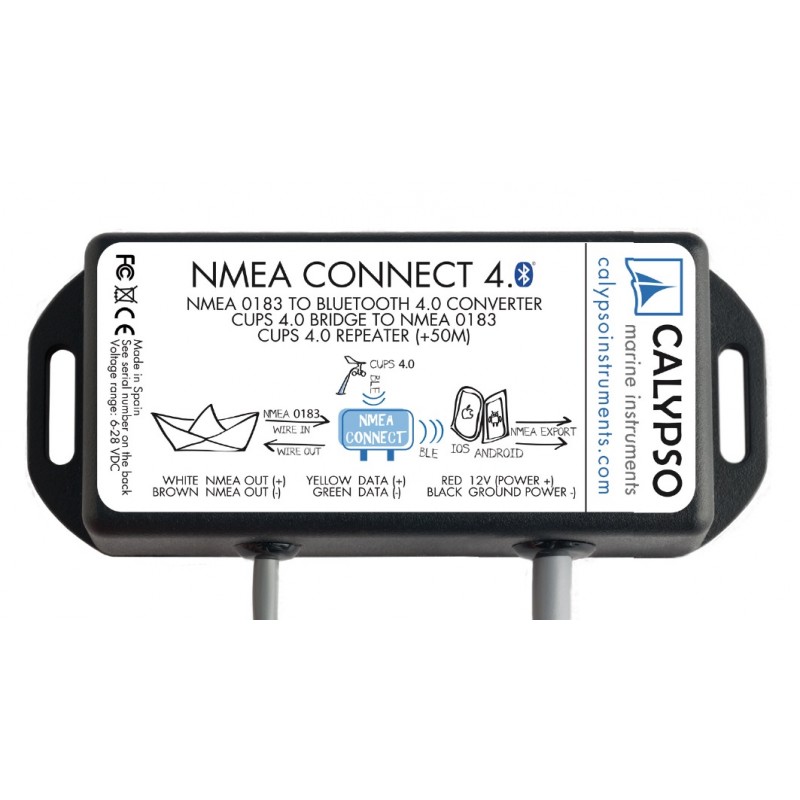

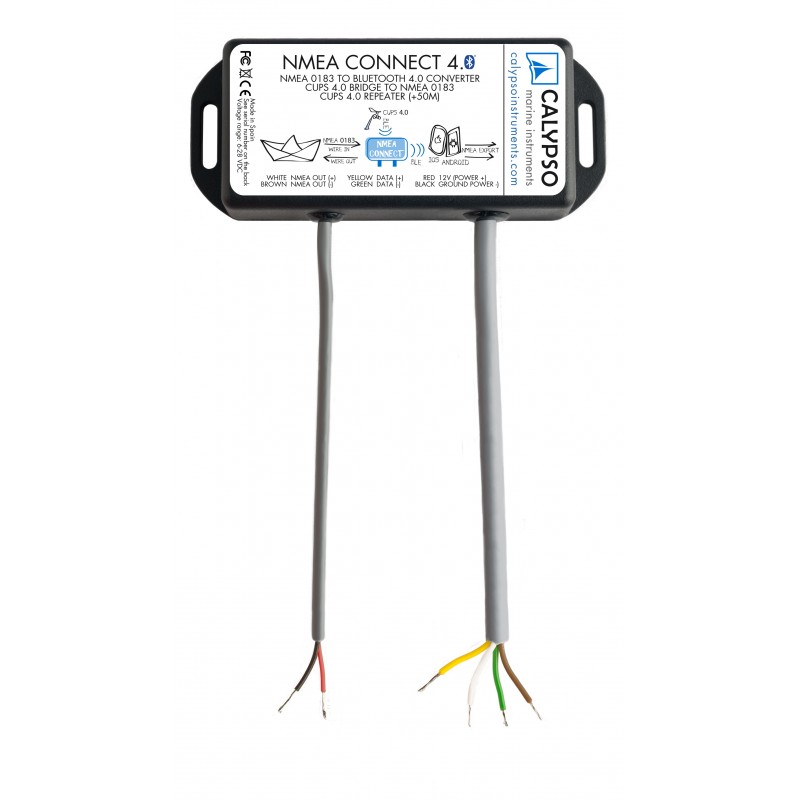

Calypso Marine Instruments NMEA Connect

A NMEA to Bluetooth Low Energy Gateway.

Easy to install, simple to use, data logger and compatible with iOS and Android.

When used on a boat with no CUPS 4.0, it will allow you by itself to get all your current NMEA 0183 data on your smartphone via Bluetooth 4.0 (Real time and export).

If you own a CUPS 4.0 anemometer, it will communicate the wind data to your boat’s NMEA 0183 network and displays.

It will also serve you as a CUPS 4.0 repeater, extending the range some extra 50m.

Features

Bluetooth

• Version: 4.0.
• Range: Up to 50 m.

Data interfaces

• RS422.

Data format

• NMEA0183.
• Baud rate
• 4800/38400 (8n1)bauds.

Voltage range

• 6 - 28 V.

Consumption

• 50-100 mA.

Dimensions

• 80x40x20 mm.
• Cable: 30 cm.

Weight

• 55 grams.

Firmware

• Upgradable (Learn more).

IP Code

• IP67 protection grade.

Easy mount

• 2 screws (Ø 3 mm).
