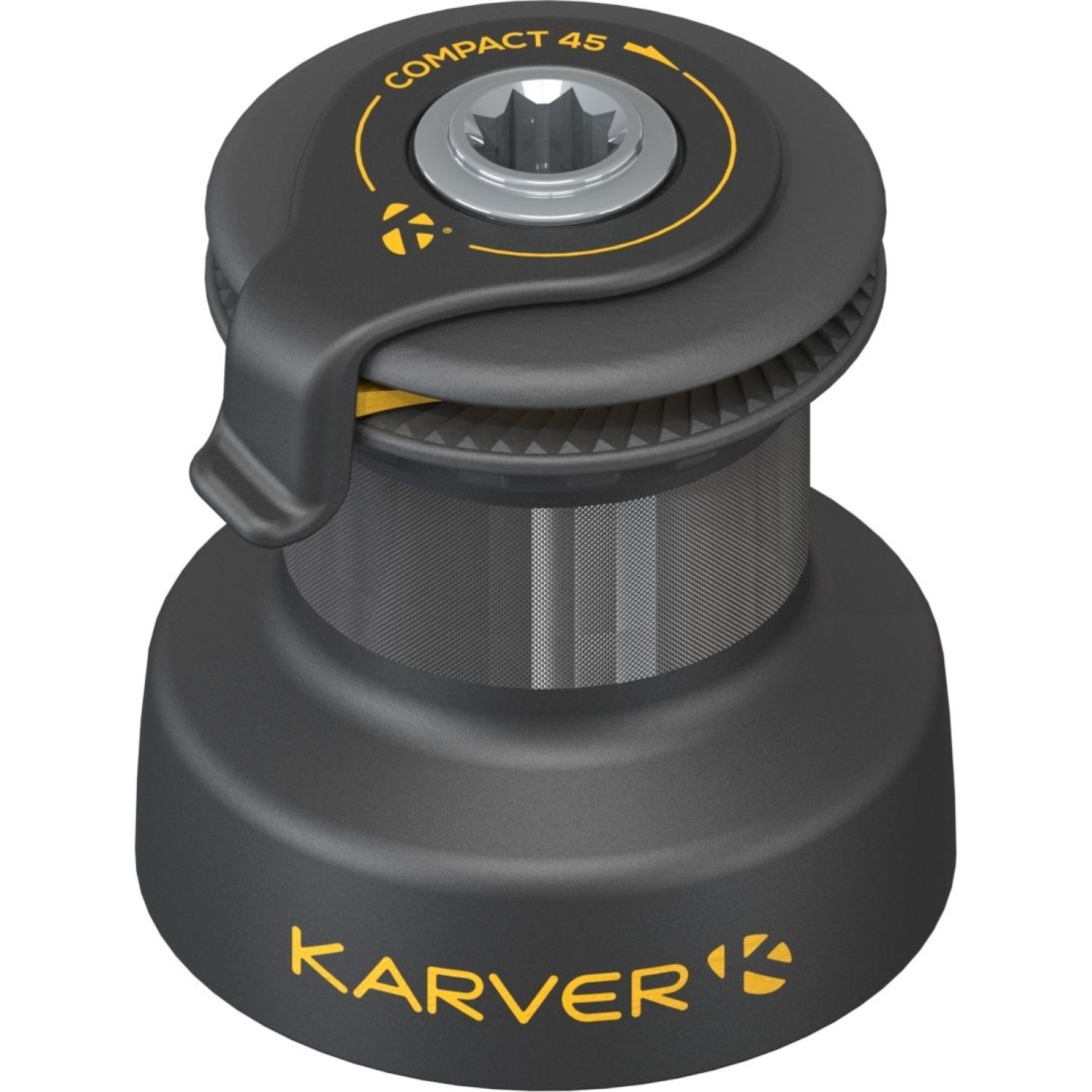

The Karver KCW45 2-speed winch is an ultra-compact sailing winch designed to deliver both speed and power in a lightweight, space-saving design. Ideal for yachts up to 40 feet, it offers a unique combination of fast line retrieval and high load capability, making sail handling easier and more efficient.
Unlike traditional winches, the KCW45 combines a fast first speed for rapid line take-up with a powerful second speed for high-load trimming. This allows you to quickly hoist sails and efficiently finish under load, improving both performance and ease of use.
Despite its compact size, the KCW45 delivers the power of a size 46 winch while fitting into a much smaller footprint. This makes it an ideal upgrade for boats looking to reduce weight and save space without compromising performance.
Key Features:
- Ultra-compact 2-speed winch design
- Fast first speed for rapid line retrieval
- Powerful second speed for high-load trimming
- Power equivalent to a size 46 winch in a compact footprint
- Self-tailing design for secure rope handling
- Lightweight construction with reduced material usage
- Flexible installation with no fixed orientation constraints
- Suitable for cruising and performance sailing
The KCW45 is ideal for a wide range of applications including tacks, gybes and sail hoists. Its compact size and reduced weight make it particularly well suited to modern yachts where space and efficiency are key considerations.
Constructed from hard anodised aluminium, the KCW45 is built for durability in demanding marine environments. High-quality materials and precision engineering ensure long-term reliability with minimal maintenance.
The KCW45 was recognised for its innovation and design, winning the prestigious DAME Award 2019 in the Hardware, Rigging & Sails category.
Specifications:
Model: KCW45
Reference: PF1205836
Weight: 3.28 kg
Recommended Boat Size: 10 – 80 ft
Number of Speeds: 2
Maximum Power: 45 kg
Working Load: 0.85 T
Breaking Load: 1.70 T
Line Diameter: 8 – 11 mm
Drum Diameter: 84 mm
Base Diameter: 130 mm
Height: 142 mm
Line per Turn: 26.4 cm (max)
Power Ratios: 6.05 / 45.0
Speed Ratios: 1.00 / 7.44
Fixing: 6 x M6
Drum Material: Aluminium (hard anodised)
Warranty: 5 years
