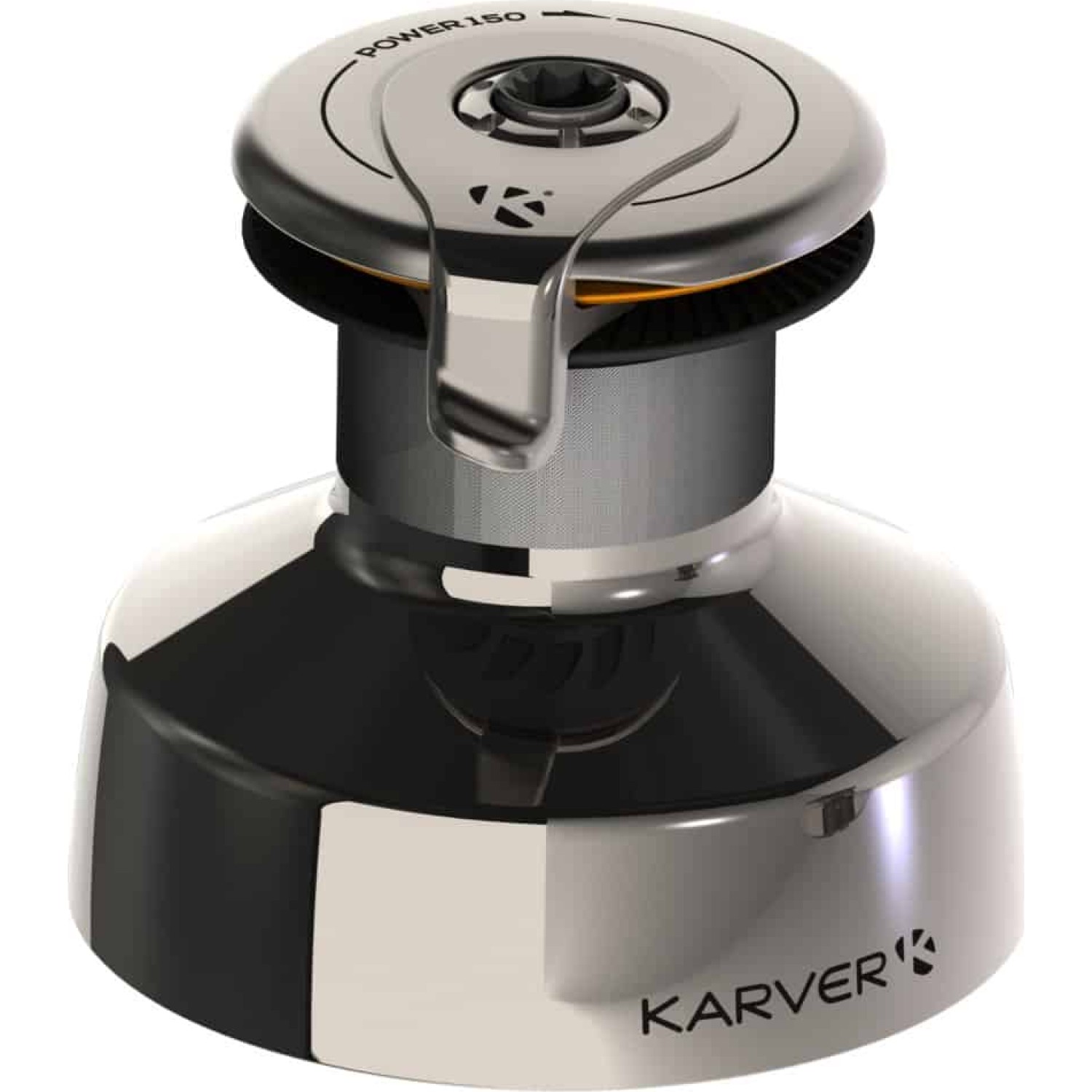

Karver KPW150 Power Winch - 4 Speed Winch - Stainless

The Karver KPW150 4-speed winch with stainless steel drum delivers maximum power for demanding sailing applications, combined with a premium, traditional finish. Featuring a polished 316L stainless steel drum, this version offers the same high-load performance as the standard model with enhanced durability and a classic aesthetic on deck.

Built on a standard size 52 footprint, the KPW150 delivers up to 3 times more power than comparable winches. This significantly reduces the effort required to handle heavy loads, making sail handling smoother, more controlled and far less physically demanding.

At the heart of the design is Karver’s 4-speed automatic gearbox, providing two standard speeds alongside two ultra-powerful gears. Gear changes are achieved simply by reversing the direction of rotation, with the winch automatically returning to first gear when the load is released for smooth, intuitive operation.

This exceptional power makes the KPW150 a true alternative to electric winches, delivering high performance without the added complexity, weight or electrical requirements. It is ideal for sailors looking to reduce fatigue while maintaining full control under load.

Key Features:

• High-power 4-speed automatic winch system
• Polished 316L stainless steel drum for durability and corrosion resistance
• Up to 3x more powerful than equivalent winches
• Size 52 footprint with significantly increased output
• Automatic gear changes via rotation direction
• Returns to first gear when load is released
• Self-tailing design for secure rope handling
• Ideal for large yachts and high-load applications

The KPW range is designed for high-load applications such as furlers, daggerboards, foils and heavily loaded sail systems. Increased power also allows the use of shorter winch handles and improves control in tight cockpit layouts.

The 316L stainless steel drum provides excellent resistance to corrosion and wear, making it ideal for long-term use in harsh marine environments. Combined with Karver’s precision engineering, this winch delivers both performance and long-term reliability.

Specifications:

Model: KPW150 Stainless Steel Drum
Reference: PF1205835 [INOX]
Weight: 14.5 kg
Recommended Boat Size: 10 – 110 ft
Number of Speeds: 4
Maximum Power: 156.18 kg
Working Load: 1.80 T
Breaking Load: 3.60 T
Line Diameter: 8 – 14 mm
Drum Diameter: 100 mm
Base Diameter: 220 mm
Height: 204.5 mm
Line per Turn: 14 cm (max)
Power Ratios: 12.20 / 55.42 / 156.18 / 34.36
Speed Ratios: 2.40 / 10.91 / 29.27 / 6.44
Fixing: 6 x M10
Drum Material: 316L Stainless Steel
Warranty: 5 years
