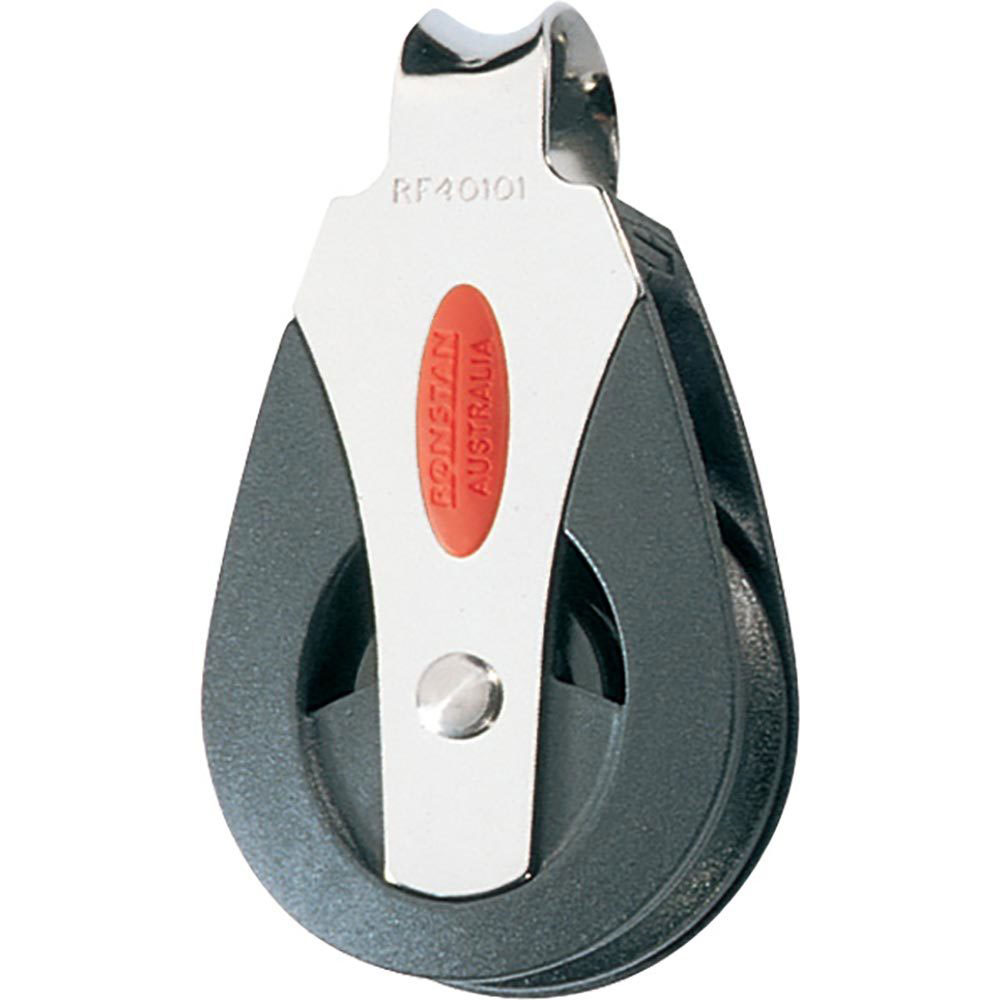

Ronstan 30mm Ball Bearing Block Loop Head Head - Single

PRODUCT INFORMATION

Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.Can be fitted with a shackle in either of two planes to allow correct alignment of the block.

APPLICATIONS

• Primary lead blocks on dinghies and catamarans
• Control lines on larger yachts

MATERIALS

• U.V. stabilised Acetal sheaves
• Acetal ball bearings
• Impact modified, fibre reinforced and U.V. stabilised Nylon cheeks
• Grade 316 stainless steel load straps and head fittings
• Acetal ball bearings
• UV stabilised Acetal sheave
• Grade 316 stainless steel load strap and head fitting
• Impact and UV resistant, fibre reinforced Nylon cheeks

FEATURES

• Low friction 2-stage ball bearing system provides consistent performance over the full working load range.
• High static and dynamic load capacity.
• Light weight
• Versatile head fittings

SPECIFICATIONS

• Sheave Ø 30 mm
• Max. Rope Ø 8 mm
• Max. Cable Ø - mm
• Pin Ø - mm
• M.W.L. 300 kg
• B. L. 750 kg
• Weight 28 g
