Wichard 5mm Captive Pin Forged Bow Shackle

Wichard
RRP:£8.50
Model WD144-BOW

Part No.:
Quantity:
Write Review

Forged CE stainless steel captive pin bow shackle.

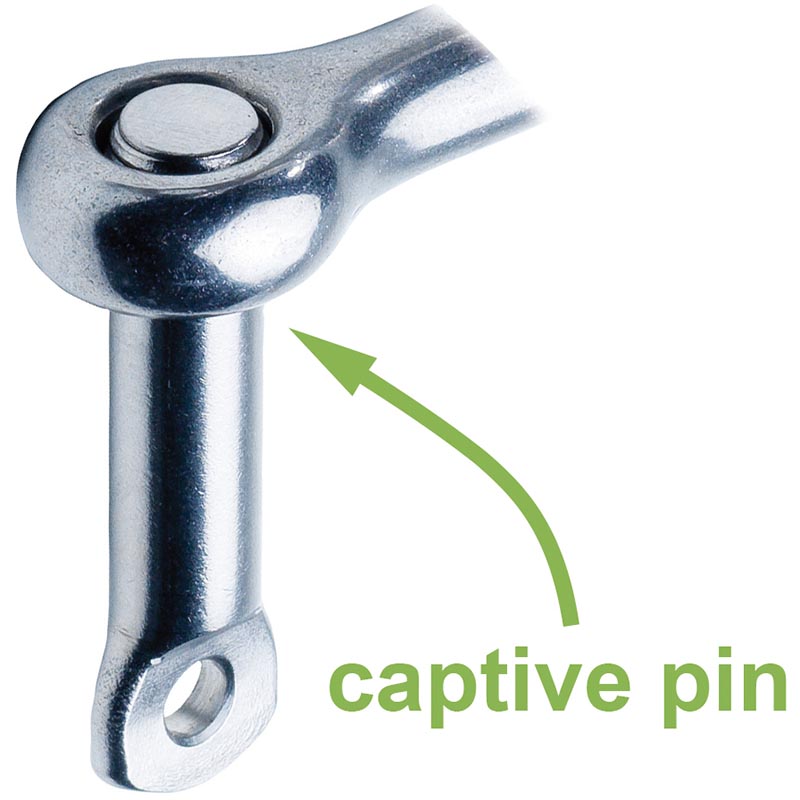

Captive pin 'patented'.

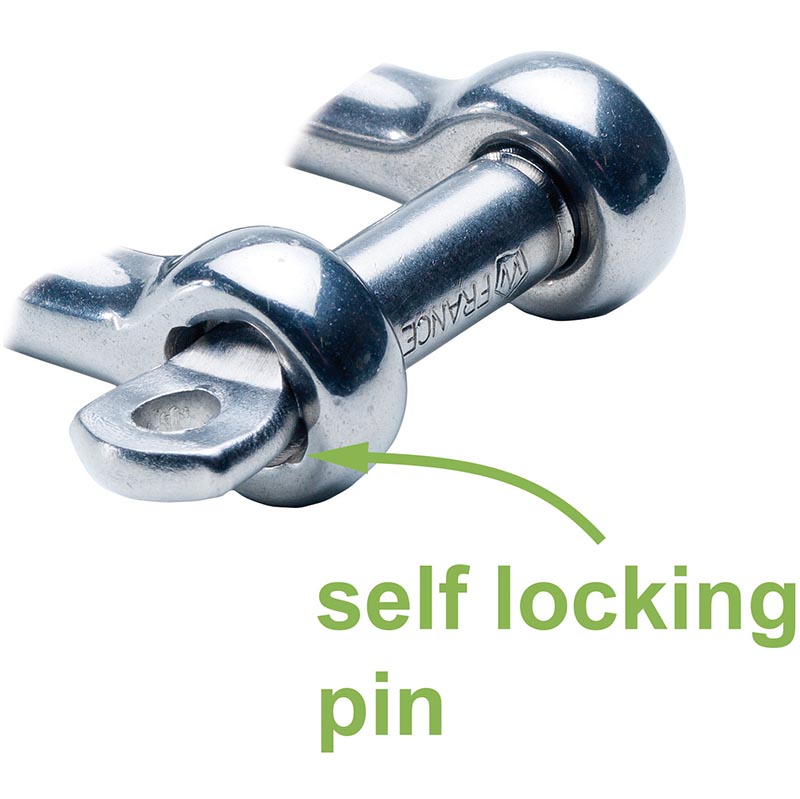

Not only are these self-locking, the pin is also connected to the body at all times, even when fully opened. Consequently, there is no more risk of seeing the pin fall in the water, which would make the shackle unusable. These shackles can therefore be fitted completely safety using just one hand.

Hot dropped forged from a single piece of stainless steel, adding strength and consistency of manufacture for total security and reliability. The technical characteristics of every Shackle is closely controlled and tested before, during and after the manufacturing process.

Manufactured from AISI 316 stainless offering excellent corrosion resistance, especially in marine environments.

CE marked in accordance with the Machines Directive 2006/42, these Wichard products can be used as lifting accessories. Each product displays the following information:

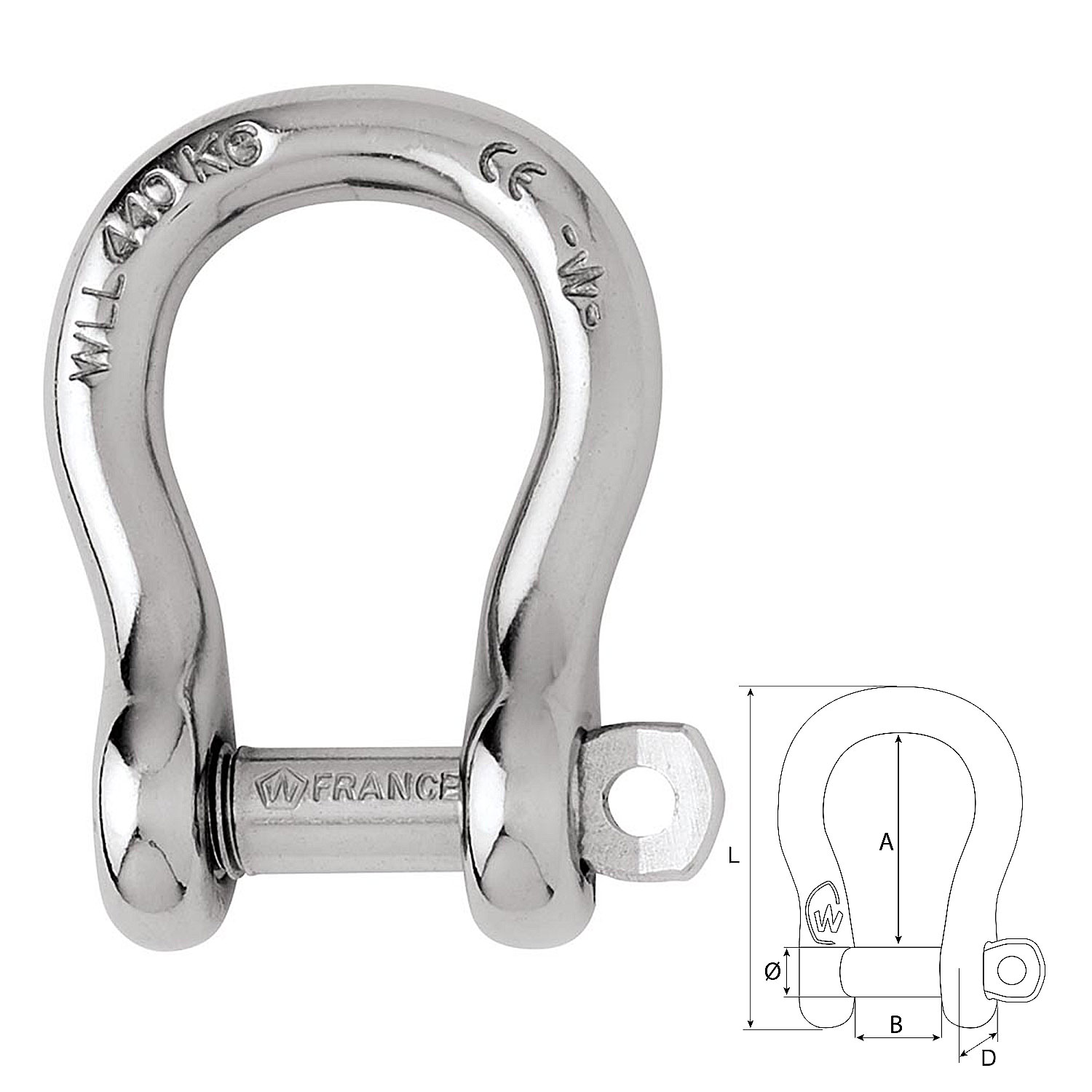

PartPin Ø
mm
L
mm
A
mm
B
mm
Pin Thread
Ø mm
D
mm
Work
Kg
BL
Kg
WLL
Kg (5:1)
Weight
Kg
WD-14414301885932010002000.010
WD-1442536231061148015003000.019
