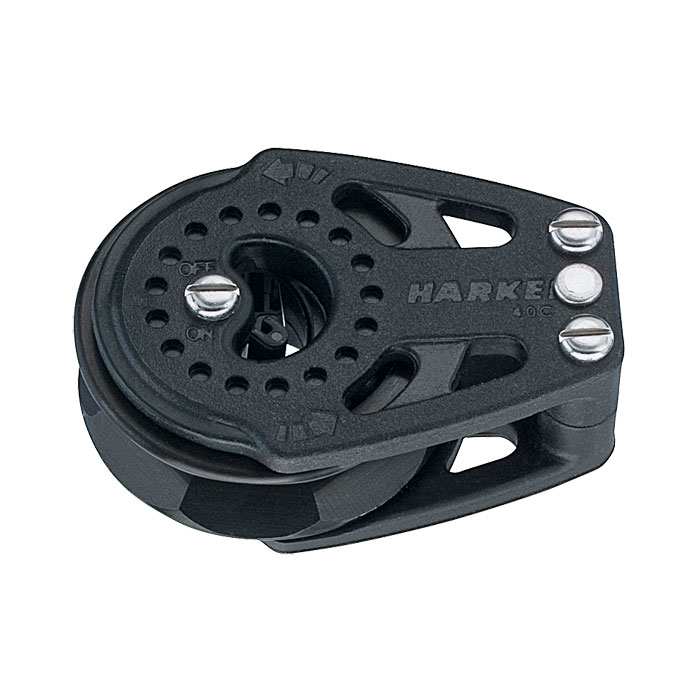

Harken 2614 40mm Carbo Ratchet Cheek Block

Harken
Model2614
NOW£60.23
WAS£63.40
You Save: £3.17 6%
In Stock - Last One  In Stock - Last One
Quantity:
Write Review

Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.

Nylon resin sideplates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Machined aluminum sheaves are Hard Lube-anodized for strength and corrosion resistance. Eight facets hold line securely. Ball bearings, sheave, and sideplates are UV-stabilized with carbon black for maximum protection.

The 40 mm ratchets are ideal for jib sheets and spinnakers where size and weight are critical. The 2608, 2609, and 2614 have on/off switches; other 40 mm ratchets are always in ratchet mode.

For the ultimate system, mount a switchable ratchet in the cockpit and a boom-mounted Ratchamatic® directly above for double holding power in heavy air and a free- running mainsheet when it’s light.

Use for:

  • Main/jib/spinnaker sheets

  • Mainsheet fine-tune

  • Traveler controls

  • Genoa leads

  • Foreguy

  • Vangs

Specifications:

  • Sheave Ø (mm) - 40 mm

  • Length (mm) - 70 mm

  • Weight (g) - 44 g

  • Maximum line Ø (mm) - 10 mm

  • Fasteners (mm) - M3 mm

  • Maximum working load (kg) - 136 kg

  • Breaking load (kg) - 454 kg

  • Footnote- Includes fasteners and mounting pad.
