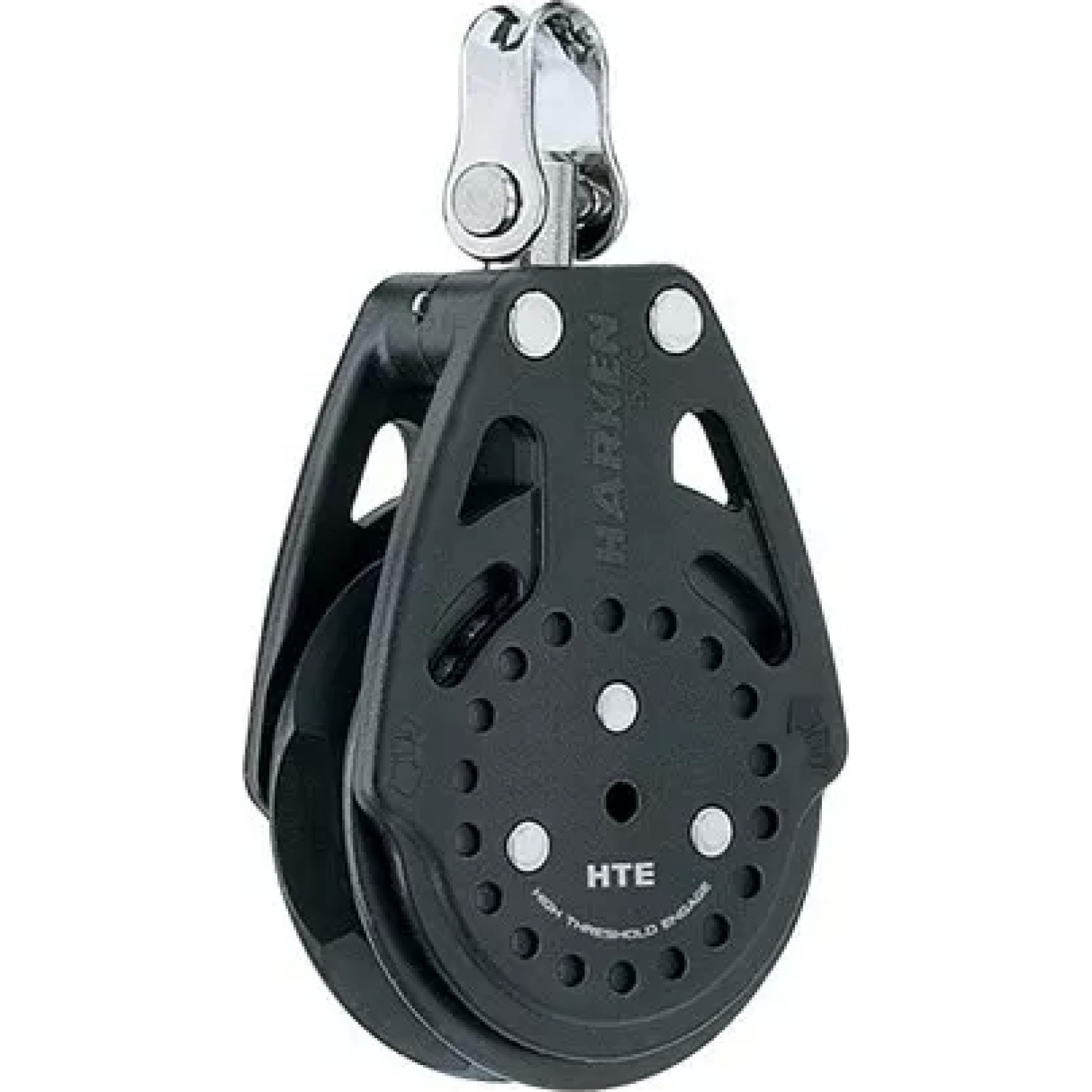

Harken 2625 57mm Carbo Ratchamatic Block - High Tension

Harken 57mm Ratchamatic® HTE Block — Swivel is a high-performance, load-sensing ratchet block designed for smooth trimming and fast line release in dynamic sailing conditions. Featuring the HTE (High Threshold Engage) system, this version delays ratchet engagement, allowing the block to run freely more of the time before activating under higher loads.

Under low loads, the block spins freely in both directions for minimal friction and efficient trimming. As load increases beyond the higher engagement threshold, the ratchet engages automatically, delivering 10:1 holding power. This makes it ideal for spinnaker and mainsheet systems where clean, fast line release is essential, particularly during gybes.

The swivel head ensures optimal alignment under changing loads, while the lightweight Carbo construction provides strength and durability without unnecessary weight. With standard grip, this block is perfectly suited to medium and light-air conditions where smooth, responsive handling is key.

Specifications

Length: 103 mm / 4 1/16 in

Weight: 104 g / 3.7 oz

Sheave Diameter: 57 mm / 2 1/4 in

Maximum Line Diameter: 10 mm / 3/8 in

Maximum Working Load: 227 kg / 500 lb

Breaking Load: 907 kg / 2000 lb

Holding Power: 10:1

Shackle Pin Diameter: 5 mm / 3/16 in

Key Features

• HTE (High Threshold Engage) system delays ratchet engagement for freer running
• Ratchamatic® load-sensing technology automatically engages under higher loads
• Standard grip for smooth control in medium and light-air conditions
• 10:1 holding power for efficient line handling
• Free-running under low loads for minimal friction and fast line release
• Ideal for spinnaker sheets and systems requiring clean gybes
• Swivel head for optimal alignment under changing loads
• Lightweight Carbo construction for strength and durability
• Low-friction performance for efficient trimming
• Suitable for dinghies, sportboats and small keelboats
• Reliable performance for racing and high-performance sailing
