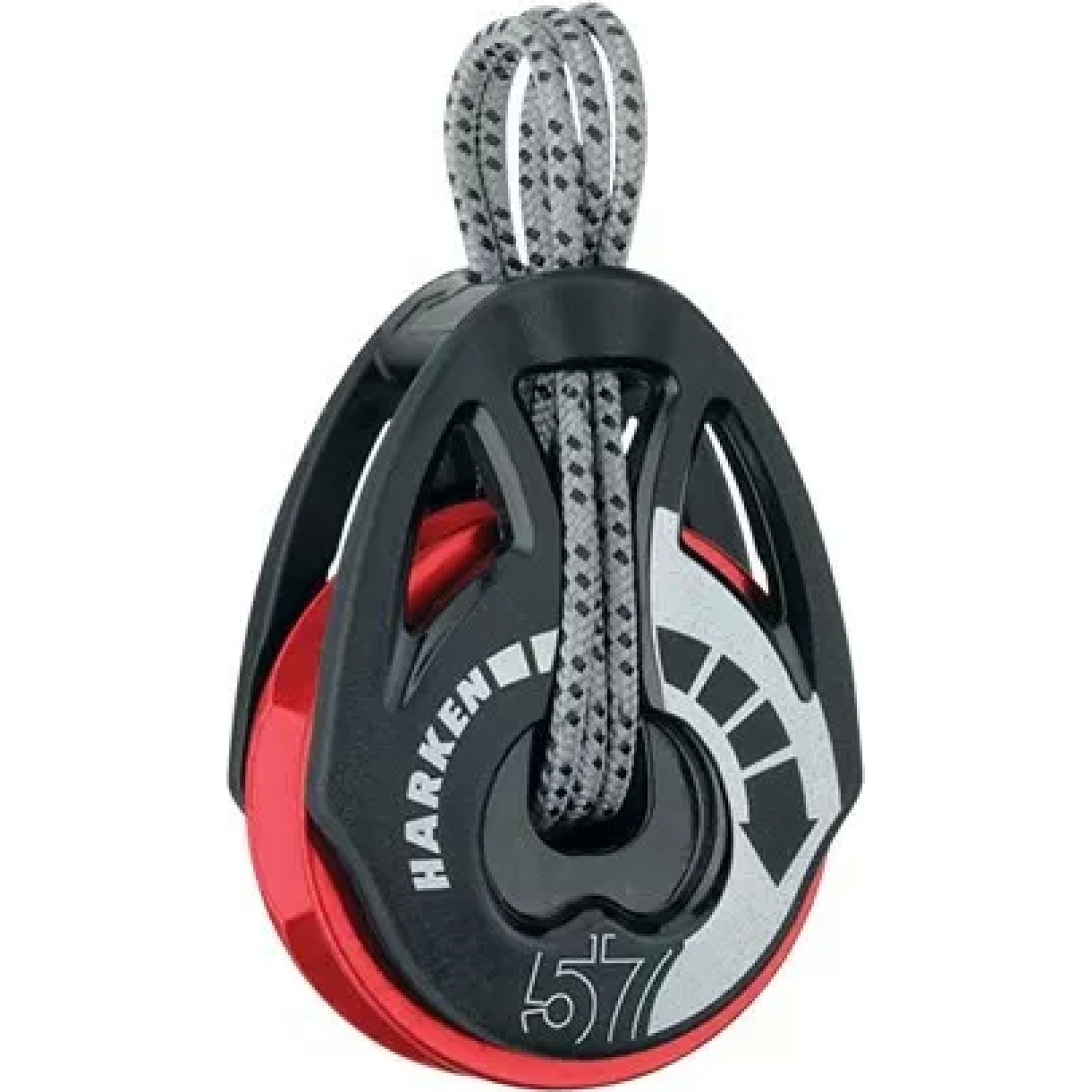

Harken 2160 57mm Carbo Ratchamatic Block - Red - Tie On

Harken 57mm T2™ Soft-Attach Ratchamatic® Block — Red Sheave is an ultra-lightweight, high-performance ratchet block designed for modern sailing systems where efficiency, weight savings and control are critical. Combining Harken’s T2™ soft-attach design with Ratchamatic® load-sensing technology, this block delivers smooth, responsive performance across all load conditions.

Under low loads, the block runs freely in both directions for minimal friction. As load increases, the ratchet engages automatically, providing enhanced holding power without manual adjustment. This seamless transition makes it ideal for dynamic sailing situations such as mark roundings and spinnaker handling.

The soft-attach system allows the block to be lashed or spliced directly through its load-bearing centre, reducing stress on the sideplates while acting as a built-in safety backup. The lightweight construction features fibre-reinforced composite sideplates and a hardcoat-anodised aluminium sheave, delivering exceptional strength-to-weight performance.

Supplied with a Spectra® lashing line, this block can be positioned precisely for optimal lead angles, making it perfect for mainsheet and spinnaker systems on beachcats, dinghies and sportboats.

Specifications

Length: 79 mm / 3 1/16 in

Weight: 71 g / 2.5 oz

Sheave Diameter: 57 mm / 2 1/4 in

Maximum Line Diameter: 10 mm / 3/8 in

Maximum Working Load: 227 kg / 500 lb

Breaking Load: 907 kg / 2000 lb

Holding Power: 10:1

Key Features

• T2™ soft-attach design for ultra-lightweight, flexible rigging
• Ratchamatic® technology automatically engages under load
• Free-running in light loads, ratchet engages as load increases
• Hardcoat-anodised aluminium sheave for strength and durability
• Fibre-reinforced composite sideplates for high strength-to-weight ratio
• Attachment line runs through load-bearing centre for reduced sideplate load and added safety
• Supplied with Spectra® lashing line for easy setup
• Adjustable positioning for optimal lead angles
• High-contrast directional markers for correct rigging
• Ideal for mainsheet and spinnaker systems
• Suitable for beachcats, dinghies and sportboats
• Reliable performance for racing and high-performance sailing
